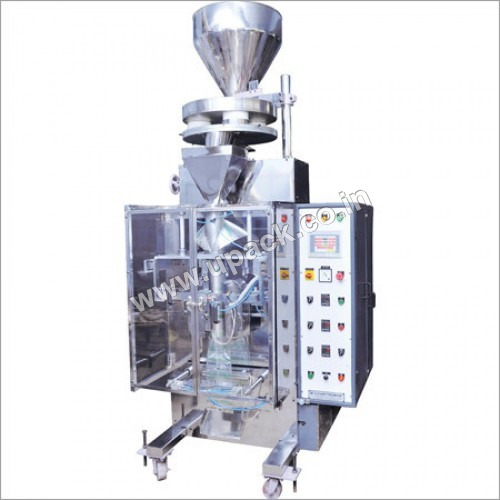

Daal Packing Machine

Daal Packing Machine Specification

Type
Packaging Line

Material
Steel and metal both

Auxiliary Packaging Machine Type
Other

Capacity
upto 1 kg Kg/day

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Power
220 Watt (w)

Voltage
220 Watt (w)

Weight (kg)
400 Kilograms (kg)

Dimension (L*W*H)
1200*1050*2700 Micromete (micron)

Color
Silver

Warranty
one year

Daal Packing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
india

Payment Terms
Cheque, Cash Against Delivery (CAD), Cash in Advance (CID), Cash Advance (CA)

Supply Ability
10 Pieces Per Month

Delivery Time
4 Week

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
center seal packing

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
CE

About Daal Packing Machine

Cup Filler Collar Machine

Function and structure characteristics

Electrical by famous barand product, statble capacity, auto rectifying device function and highly auto.
PLC is controlled with touch panel step by step instruction stainless steel 304 contact parts or carbon steel.

For guaranteeing stable line- term operation of the machine electrical equipment are imported.

The machine combined with filling, sealing, date-printing and counting etc.
The opening and closing type metering device can be used according with material.

Applied Scope

Be suit for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as : Puffed food, puffs, Rings, Twist Snacks, Tea Leaf, Namkeens, Sugar, Grains etc.

Model No.	UPM4001
Filling Rang	20gm to 50gm, 100gm, 250gm depend on products
Filling System	Cup filler
Sealing Type	Center / Side Seal
Air Pressure	6 CMF 6 BAR
Bag Pulling System	By Cluch / Servo
Film Size	150mm-450mm(W) X 100-300mm (L) Laminated Film
Speed	30 to 50 Bag/min
Power	3KW 230Vt/AC/Single phase / 50Hz
Max Film Size	430mm
Dimension	1080L X 1300W X 1400(H) mm
Machine Weight	400KG
Optional	Batch cooding, Nitrogen Attachment etc.
