Send InquirySemi Automatic Carton Sealer
Semi Automatic Carton Sealer Specification
- Dimension (L*W*H)
- 1770 x 800 x 1420 mm
- Packaging Speed
- 360-720 cartons/hr
- Driven Type
- Belt Driven
- Condition
- New
- Sealing Length
- 150 mm to Unlimited
- Contact Load
- Standard
- Sealing Type
- Adhesive Tape Sealing
- Application
- Sealing Corrugated Cartons
- Packaging Material
- BOPP Tape, PVC Tape
- Power
- 220V / 50Hz / 1Ph, 0.2 kW
- Color
- Yellow & Black
- Sealing Speed
- 20 m/min (approx)
- Type
- Semi Automatic Carton Sealer
- Production Capacity
- Approx. 700 cartons per day
- Voltage
- 220V
- Accuracy
- High
- Weight
- 120 kg (approx)
- Seals Type
- Top and Bottom Flap Sealing
- Automation Grade
- Semi Automatic
- Filling Capacity
- Up to 40 cartons per minute
- Conveyor Height
- Adjustable, 600-750 mm
- Noise Level
- Low
- Tape Width Supported
- 36 mm, 48 mm, 60 mm
- Installation
- Plug and Play
- Control System
- Push Button Start/Stop
- Minimum Carton Size
- 150 x 150 mm
- Maintenance
- Low
- Maximum Carton Size
- 500 x 500 mm
- Frame Material
- Mild Steel Powder Coated
Semi Automatic Carton Sealer Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 30 Units Per Week
- Delivery Time
- 1-2 Days
About Semi Automatic Carton Sealer
The Semi-automatic carton sealer is a precisely designed machine, which is accessible in superior grade quality as well as exact dimension. The sealer is totally free from defect. It has manually adjustable box as well as top & bottom belt drive. The said components allows for smooth as well as reliable taping. Semi-automati ccarton sealer is accessible with a sturdy and robust construction. It is used to seal the seeds, pickles etc. The said machine is provided with a hassle-free operation.
Versatile Sealing for Diverse Carton Sizes
This semi automatic carton sealer efficiently manages a wide range of carton dimensions, from small boxes (150 x 150 mm) to larger packages (500 x 500 mm). Its adjustable conveyor height and compatibility with multiple tape widths (36, 48, and 60 mm) ensure seamless integration with varying packaging needs, providing flexibility for different operational scales and industries.
Simple Operation and Low Maintenance
The user-friendly design features a plug-and-play installation and push-button start/stop control system, enabling quick setup and easy operation. Engineered for low maintenance, it minimizes downtime and maximizes productivity. The mild steel powder-coated frame adds durability for continuous, long-term use, making it suitable for busy production environments.
Efficient and Accurate High-Speed Sealing
Capable of sealing up to 40 cartons per minute and up to 700 cartons per day, this machine offers exceptional speed without compromising precision. With high accuracy in adhesive tape sealingusing either BOPP or PVC tapeeach package is reliably secured, enhancing workflow efficiency for manufacturers, suppliers, and exporters.
FAQs of Semi Automatic Carton Sealer:
Q: How does the semi automatic carton sealer operate?
A: The carton sealer functions by automatically applying adhesive tape to both the top and bottom flaps as cartons move through the belt-driven conveyor. Operators simply position the carton and use the push-button start/stop controls, making the process efficient and easy to manage.Q: What types and sizes of cartons can this machine seal?
A: The machine is designed to handle corrugated cartons with minimum dimensions of 150 x 150 mm and maximum dimensions of 500 x 500 mm. It supports both small and large carton sizes, with sealing lengths starting at 150 mm and extending to unlimited lengths.Q: When should I use this carton sealer in my packaging process?
A: This carton sealer is ideal for use after products are packed into corrugated cartons. It is best suited for mid- to high-volume environments where consistent, reliable sealing of cartons is needed to enhance packing speed and accuracy.Q: Where is this carton sealer commonly installed?
A: The semi automatic carton sealer is typically installed in packaging lines within factories, warehouses, or distribution centers. Its plug-and-play feature allows easy integration into existing operations in various industrial environments.Q: What is the process for adjusting the conveyor height?
A: The conveyor height can be adjusted between 600 and 750 mm to accommodate different working conditions and ergonomic preferences. Adjustment mechanisms are designed for quick changes, ensuring optimal setup for varying operators or carton sizes.Q: How does this machine benefit packaging operations?
A: The sealer increases efficiency by processing up to 40 cartons per minute, reduces manual effort, improves sealing accuracy, and maintains low operational noise. Its robust frame and low-maintenance design help minimize downtime, supporting high-productivity packaging environments.Q: What packaging materials are compatible with this carton sealer?
A: It is compatible with both BOPP and PVC adhesive tapes, in widths of 36 mm, 48 mm, and 60 mm, catering to a wide range of sealing requirements for different products and carton types.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Band Sealer Machine Category
Shrink Packing Machine 260 Table Top
Price 22560.0 INR / Piece
Minimum Order Quantity : 1 Piece
Application : Sealing, Shrink Wrapping of packages
Weight : 35 kg
Packaging Material : PVC/POF/Polyolefin Shrink Film
Dimension (L*W*H) : 800 x 550 x 320 mm

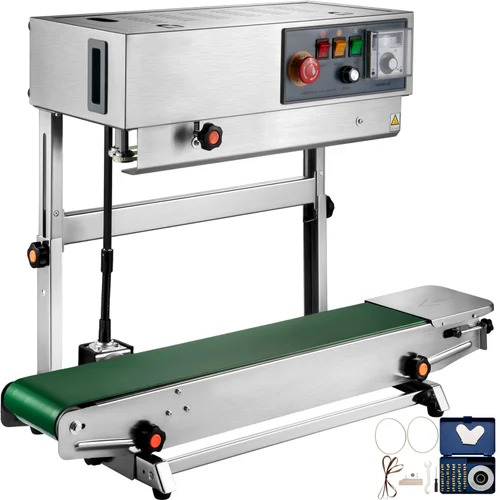

Continuous Band Sealer (MS Body Vertical) Hualian
