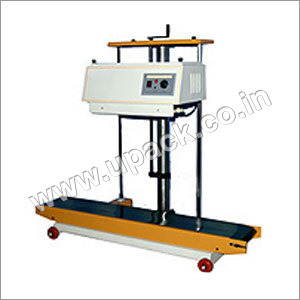

Vertical Band Sealer

Vertical Band Sealer Specification

Sealing Speed
0-12 m/min

Packaging Speed
0-12 meters per minute

Voltage
220V / 50Hz

Color
Green & metallic

Seals Type
Flat, embossed

Weight
32 kg

Production Capacity
500-700 bags/hour

Automation Grade
Semi Automatic

Type
Vertical Band Sealer

Driven Type
Electric

Application
Sealing plastic bags, pouches, laminated bags

Contact Load
Standard

Accuracy
High

Power
650 W

Sealing Type
Continuous band sealing

Dimension (L*W*H)
840 380 320 mm

Condition
New

Sealing Length
Unlimited

Filling Capacity
Up to 3 kg (depends on bag size)

Packaging Material
Laminated film, Aluminum foil, Polypropylene (PP), Polyethylene (PE)

Maintenance
Low maintenance required

Working Direction
Left to right (standard, reversible design)

Sealing Width
6-12 mm (adjustable)

Noise Level
<75 dB

Frame Material
Stainless steel & powder-coated steel

Ambient Temperature
5°C - 40°C

Print Type
Optional coding device for date/lot printing

Max Conveyor Load
3 kg

Conveyor Height Adjustment
Adjustable (To suit different bag heights)

Temperature Control
Digital adjustable temperature control

Vertical Band Sealer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
30 Pieces Per Week

Delivery Time
2-3 Days

About Vertical Band Sealer

A vertical band sealer is a type of sealing machine used to seal products in pouches made of various materials such as plastic, paper, or foil. It is given this name because it seals the pouch from top to bottom using a continuous band of material. It works by feeding the pouch through a pair of sealing wheels, which heat up and melt the material to form a strong, airtight seal. A vertical band sealer is often used in packaging applications for food, pharmaceuticals, and other products requiring complete protection from external elements.

Adjustable Conveyor for Flexible Operations

This band sealer is designed for packaging flexibility, offering easy conveyor height adjustment to fit diverse bag sizes and types. The reversible working direction and semi-automatic design make it adaptable to various production setups, ensuring smooth integration into your existing packaging line.

Reliable and Consistent Seal Quality

Digital adjustable temperature control and a sealing width range of 6-12 mm assure reliable seals on different materials-including laminated film, aluminum foil, PP, and PE. The sealing length is unlimited, supporting both small and large packaging requirements while maintaining high accuracy and consistency.

Low Maintenance and Efficient Performance

Engineered for durability and efficiency, the sealer requires minimal maintenance. Operating at <75 dB and with a 650 W power requirement, it can seal up to 700 bags per hour, making it a practical choice for high-volume bag sealing in industrial and commercial settings.

FAQ's of Vertical Band Sealer:

Q: How does the adjustable conveyor height benefit different packaging requirements?

A: The adjustable conveyor height enables the sealer to accommodate various bag sizes and shapes, ensuring that bags of different heights are sealed efficiently and securely. This feature enhances versatility and flexibility in packaging operations.

Q: What types of bags and materials are compatible with this vertical band sealer?

A: This sealer is compatible with a wide range of packaging materials, including polyethylene (PE), polypropylene (PP), laminated films, and aluminum foil. It is ideal for sealing plastic bags, pouches, and other forms of flexible packaging.

Q: Where is the Vertical Band Sealer commonly used in industry settings?

A: The machine is widely used in food processing, pharmaceuticals, agriculture, chemical, and other manufacturing sectors across India, primarily for sealing bags that require both strength and accuracy in high-volume applications.

Q: What is the sealing process using this band sealer?

A: During operation, bags are placed on the conveyor and pass through the heated sealing unit. Digital temperature and adjustable speed allow for secure, consistent seals of 6-12 mm width. Optional coders can print dates or lot numbers simultaneously during the sealing process.

Q: When should the temperature and speed settings be adjusted?

A: Temperature and speed should be adjusted based on the type and thickness of the bag material. Thicker or heat-sensitive materials may require lower speeds and specific temperature settings for optimal results.

Q: What are the benefits of using this sealer for packaging operations?

A: Key benefits include high sealing accuracy, the ability to process up to 700 bags per hour, continuous sealing for unlimited bag length, low noise and maintenance, and optional coding for traceability. These features improve productivity and help maintain sealed product quality.
